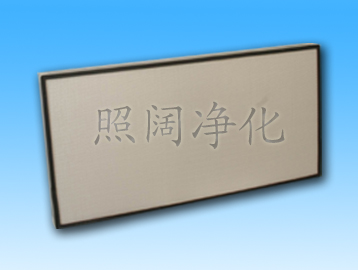

| Product name： | Mini-Pleat Air Filter |
| Description： |
Feature:
1. Adopting acidic abrasive processed aluminum alloy metal;
2. Adopting special superfine glass fiber as filter cartridge;
3. Use computer controlled automatic folding machine system to glue spray and fold, and folding height in 20-100 without extreme, which make sure same fold layer space, thus ensure the airflow can go though the minimal resistance;
4. Firm structure, each filter inspect rigorously, adopting international standard size;
5. Various efficiency types between F6-U16 are available.
Application:
Suitable for high cleanliness occasions, such as hospital, electronics factory, semiconductor manufacture, clean room, clean work station etc.
High efficiency Technical Parameters
Model
W*H*D (mm)
Efficiency
Air Flow (CMH)
Resistance
(Pa)
Air Flow (CMH)
Resistance
(Pa)
Filter
Area
M2
Frame
Filter
Material
Protecting Wire Net
Sealing Strip
ZZK-WG665
610*610*50
F7
603
54
1005
90
7.45
Aluminum frame
Galvanize frame
Plastic frame
Fiberglass
Aluminum net
Baking finish net
Polyure- thane
H10
90
140
H13
135
230
H14
155
260
ZZK-WG1155
1170*570*50
F7
1080
54
1800
90
13.44
H10
90
140
H13
135
230
H14
155
260
ZZK-WG667
610*610*70
F7
603
36
1005
60
11.70
H10
60
100
H13
110
165
H14
120
185
ZZK-WG967
915*610*70
F7
904
36
1507
60
17.63
H10
60
100
H13
110
165
H14
120
185
ZZK-WG1157
1170*570*70
F7
1080
36
1800
60
21.11
H10
60
100
H13
110
165
H14
120
185
ZZK-WG1267
1220*610*70
F7
1206
36
2009
60
23.55
H10
60
100
H13
110
165
H14
120
185
ZZK-WG668
610*610*80
F7
603
32
1005
55
13.84
H10
55
90
H13
95
150
H14
105
165
ZZK-WG1158
1170*570*80
F7
1080
32
1800
55
24.95
H10
55
90
H13
95
150
H14
105
165
ZZK-WG339
320*320*90
F7
166
30
276
50
4.3
H10
50
80
H13
85
130
H14
95
150
ZZK-WG449
484*484*90
F7
379
30
632
50
9.98
H10
50
80
H13
85
130
H14
95
150
ZZK-WG669
630*630*90
F7
603
30
1072
50
17.06
H10
50
80
H13
85
130
H14
95
150
ZZK-WG1159
1170*570*90
F7
1080
30
1800
50
28.79
H10
50
80
H13
85
130
H14
95
150
Suggest final pressure loss is 2-3 times of original pressure loss, the sizes can be made according to the client's requirements.
Ultra Efficiency Technical Parameters:
Model
W*H*D (mm)
Efficiency
Air Flow (CMH)
Resistance
(Pa)
Filter
Area
M2
Frame
Filter
Material
Protecting Wire Net
Sealing Strip
ZZK-WCG665
610*610*50
U15
603
170
7.45
Aluminum frame
Galvanize frame
Plastic frame
Fiberglass
Aluminum net
Baking finish net
Polyure- thane
U16
190
ZZK-WCG1155
1170*570*50
U15
1080
170
13.44
U16
190
ZZK-WCG1265
1220*610*50
U15
1205
170
14.99
U16
190
ZZK-WCG667
610*610*70
U15
603
145
11.7
U16
165
ZZK-WCG1157
1170*570*70
U15
1080
145
21.11
U16
165
ZZK-WCG1267
1220*610*70
U15
1205
145
23.55
U16
165
Suggest final pressure loss is 2-3 times of original pressure loss, the sizes can be made according to the client’s requirements.
 |
||||||||||
|
||||||||||
 |
||||||||||
