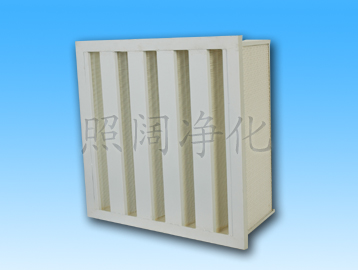

| Product name： | Combined V- Type Filte |
| Description： |
Feature:
1. It's mini-pleat filter element adopts full-automatic fold scene machine for spraying and folding;
2. Using Special fiberglass filter paper or polypropylene as filter material;
3. The frame made of metal, or plastic;
4. Large effective area, low resistance, long service life;
5. Each filter through rigorous testing;
6. Various efficiency types between F6-H14 are available.
Application:
V-type medium effective filter is suitable used in big volume ventilation device, such as final stage filter, and front filter of high efficiency and ultra efficiency of ventilation system in power plant.
V-type Technical Parameters:
Model
W*H*D (mm)
Efficiency
Air Flow (CMH)
Resistance
(Pa)
Filter
Area
M2
Frame
Filter
Material
Protecting Wire Net
Sealing Strip
ZZK-2VXZ362
305*610*292
F7
1700
120
11.19
Aluminum frame
Galvanize frame
Plastic frame
Fiberglass
Synthetic fiber
Polyure- thane
EVA
H10
180
H14
249
ZZK-4VXZ632
610*305*292
F7
1700
120
11.37
H10
180
H14
249
ZZK-5VXZ632
610*305*292
F7
1700
105
14.21
H10
180
H14
235
ZZK-6VXZ632
610*305*292
F7
1700
95
17.05
H10
180
H14
216
ZZK-4VXZ662
610*610*292
F7
3400
120
22.39
H10
180
H14
249
ZZK-5VXZ662
610*610*292
F7
3400
105
27.98
H10
180
H14
235
ZZK-6VXZ662
610*610*292
F7
3400
95
33.58
H10
180
H14
216
ZZK-2VFZ287
287*287*292
F7
800
90
4.2
H10
180
H14
240
ZZK-4VFZ522
592*287*292
F7
1700
120
9.12
H10
180
H14
249
ZZK-4VFZ542
592*490*292
F7
3400
120
16.24
H10
180
H14
249
ZZK-4VFZ552
592*592*292
F7
3400
120
19.79
H10
180
H14
249
Suggest final pressure loss is 2-3 times of original pressure loss, VF flange thickness is 25mm, size can be made according to the client's requirements.
 |
||||||||||
|
||||||||||
 |
||||||||||
