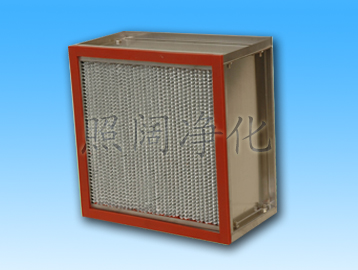

| Product name： | Heat-Resistant Filter |
| Description： |
Feature:
1. Deep-pleat filter element adopts full-automatic fold scene machine for folding;
2. Using Special fiberglass filter paper as filter material;
3. The frame made of stainless steel equipped with high temperature proof sealing strip;
4. Heat resistant temperature 250℃-300℃;
5. Large filtering space, low resistance, big dust collection, long service life;
6. Each filter through rigorous testing;
Application:
Mainly used in places require high temperature air purification equipment and system such as clean dry oven.
Technical Parameters:
Model
W*H*D (mm)
Efficiency
Air Flow (CMH)
Resistance
(Pa)
Filter
Area
M2
Air Flow (CMH)
Resistance
(Pa)
Filter
Area
M2
Frame
Filter
Material
Protecting Wire Net
Sealing Strip
ZZK-YG3615
305*610*150
F7
502
85
5.41
853
125
6.87
Aluminum frame
Galvanize frame
SS.Frame
Fiberglass
Aluminium foil
Heat-resistant
Heat-resistant
H11
175
205
H13
210
249
ZZK-YG6615
610*610*150
F7
1004
85
10.4
1707
125
13.19
H11
175
205
H13
210
249
ZZK-YG9615
915*610*150
F7
1507
85
15.25
2562
125
19.51
H11
175
205
H13
210
249
ZZK-YG12615
1220*610*150
F7
2008
85
20.24
3414
125
25.97
H11
175
205
H13
210
249
ZZK-YG3629
305*610*292
F7
1004
85
12.05
125
15.38
H11
175
205
H13
210
249
ZZK-YG6629
610*610*292
F7
2008
85
23.16
2000
125
29.53
H11
175
205
H13
210
249
ZZK-YG9629
915*610*292
F7
3014
85
33.98
5124
125
43.69
H11
175
205
H13
210
249
ZZK-YG12629
1220*610*292
F7
4016
85
45.09
6827
125
58.15
H11
175
205
H13
210
249
ZZK-YG12622
1260*630*220
F7
3429
85
34.67
5829
125
44.82
H11
175
205
H13
210
249
ZZK-YG6622
630*630*220
F7
1714
85
17.8
2914
125
22.85
H11
175
205
H13
210
249
ZZK-YG9422
968*484*220
F7
2024
85
20.58
3441
125
26.46
H11
175
205
H13
210
249
ZZK-YG4415
484*484*150
F7
632
85
6.59
1075
125
9.39
H11
175
205
H13
210
249
ZZK-YG4422
484*484*220
F7
1012
85
10.64
1720
125
13.58
H11
175
205
H13
210
249
ZZK-YG3315
320*320*150
F7
276
85
2.97
469
125
3.75
H11
175
205
H13
210
249
ZZK-YG3322
320*320*220
F7
440
85
4.8
751
125
6.05
H11
175
205
H13
210
249
Suggest final pressure loss is 2-3 times of original pressure loss, constant temperature 250℃,instant can be 300℃,special sizes or temperature requirement can be made according to the client's requirements.
 |
||||||||||
|
||||||||||
 |
||||||||||
