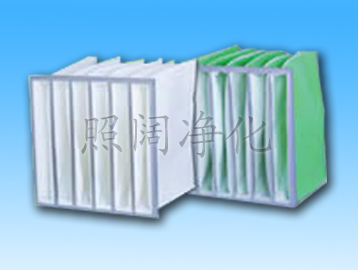

Product name: Non-Woven Bag Filter
Description:



Detailed information


Feature:

1.       Filter material adopts high throughput and low resistance chemical fiber fabric,

possessing high dust collection efficiency

2.       Washable, high cost performance, efficiency specification is G4,F6;

3.       Widely used in commercial and industrial ventilating system as pre-filter;

4.       Can be made according to the client's requirements





Model

W*H*D(mm)

Bag Quantity

Efficiency

Air Flow

CMH

Resistance Pa

Air Flow

CMH

Resistance PaPa

Filter area

m2

Frame

material

ZZK-3DWF253

290*594*381

3

G4

1240

35

1860

65

1.6

Aluminum frame



Galvanize frame



S.S. Frame



None Frame

Non-woven

F6

80

124

ZZK-3DWF453

490*594*381

5

G4

2100

35

3150

65

2.7

F6

80

124

ZZK-3DWF553

594*594*381

6

G4

2540

35

3800

65

3.3

F6

80

124

ZZK-3DWF254

290*594*450

3

G4

1240

30

1860

45

1.9

F6

70

105

ZZK-3DWF454

490*594*450

5

G4

2100

30

3150

45

3.1

F6

70

105

ZZK-3DWF554

594*594*450

6

G4

2540

30

3800

45

3.7

F6

70

105

ZZK-3DWF256

290*594*558

3

G4

1240

25

1860

35

2.3

F6

55

85

ZZK-3DWF456

490*594*558

5

G4

2100

25

3150

35

4.1

F6

55

85

ZZK-3DWF556

594*594*558

6

G4

2540

25

3800

35

4.6

F6

55

85

We can accept other size order beside the above mentioned size.
