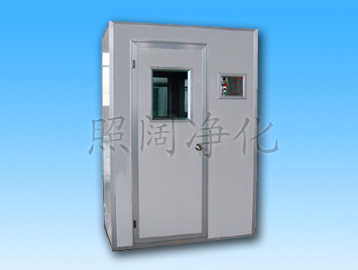

| Product name： | Air shower |
| Description： |
Feature:
1. Intelligent microcomputer auto control panel, easy and simple to handle, the inner of air shower be equipped with intelligent touch membrane control panel, convenience for setting model and the time of air shower. Photo-electric sensors controller on the bottom supply automatic sprinkler and circulated sprinkler.
2. Be equipped with primary efficiency and high efficiency filter, the air in the air shower suppressed into the plenum chamber by low noise centrifugal blower through pre-filter of primary efficiency filter, then spew with high speed from nozzle through high efficiency filter to eliminate the dusts adhesion to the surface of person body and goods.
3. The speed of spray can reach to 26mper second. Full stainless steel nozzle can freely adjust the direction of spray, the time of shower can be chosen with limits, which effectively achieving the aim of cleanliness by shower
Technical Parameters:
|
Model |
FLS-1A |
FLS-2A |
FLS-1B |
FLS-4A |
|
Suitable Person |
single person |
double person |
three person |
four person |
|
time Of Air Shower |
0-99s adjustable |
0-99s adjustable |
0-99s adjustable |
0-99s adjustable |
|
Nozzle Quantity |
12 Pcs (two sides) |
24 Pcs (two sides) |
36 Pcs (one side) |
48 Pcs (two sides) |
|
Diameter Of Nozzle Outlet |
φ38mm |
φ38mm |
φ38mm |
φ38mm |
|
Air Speed From Nozzle |
＞20m/s |
＞20m/s |
＞20m/s |
＞20m/s |
|
Internal Dimension(mm) |
800W*750D*1900H |
800W*1500D*1900H |
800W*2250D*1900H |
800W*3000D*1900H |
|
External Dimension(mm) |
1600W*850D*2000H |
1600W*1600D*2000H |
1600W*2350D*2000H |
1600W*3100D*2000H |
|
Power |
3N, 380V, 50Hz |
3N, 380V, 50Hz |
3N, 380V, 50Hz |
3N, 380V, 50Hz |
|
Ultimate Output |
400W×2台 |
400W×4台 |
400W×6台 |
400W×8台 |
|
Filter Dimension(mm) |
600*600*120×2个psc |
600*600*120×4个pcs |
600*600*120×6个pcs |
600*600*120×8个pcs |
Application:
Air shower is the necessary passage for people passing in and out clean zone, play a role in valve cage closing clean room. Reducing the pollution caused by passing in and out clean zone, spewing high speed clean airflow from HEPA to eliminate the dust and bacterium from people passing in and out unclean zone effectively and quickly.
Air shower widely used in electronic, national defense, precise instrument, appearance, automobile manufacturing, pharmaceutical and chemical, agriculture, biology etc. various industry department and science lab.
 |
||||||||||
|
||||||||||
 |
||||||||||
