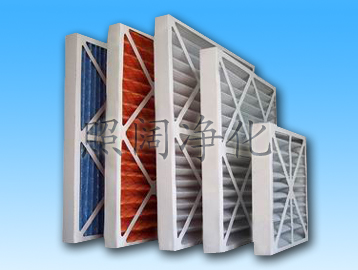

| Product name： | Fold type filte |
| Description： |
Feature:
1. Filter material fiber be made by the method of special punching,
with high air permeability.
2. Using composed metal net as filter material which making into folding type,
its filter area is 5 times than general flat filter screen, with long service life,
low resistance features.
3. Efficiency is from G3 to F8, sizes can be made according to client's requirement.
4. The frame material can be paper, galvanized, stainless steel or plastic.
Application:
As primary filter it suitable for commercial or industrial ventilate air-conditioning system, central air-conditioning, clean spot or other related industry.
Technical Parameters
Model
wxhxd
air flow
(m3/h)
pressure
(Pa)
Filter Area
(m2)
(mm)
W*H*D (mm)
标 准
Standard air flow
高风量
Max Air Flow
标 准
standard
高风量 max air flow
HPP-12×24×1
290×595×23
600
1200
20
63
0.40
19
HPP-20×14×1
493×341×23
550
1100
0.39
HPP-20×15×1
493×366×23
625
1250
0.43
HPP-20×16×1
493×391×23
650
1300
0.45
HPP-20×20×1
493×493×23
800
1600
0.56
HPP-20×24×1
493×595×23
950
1900
0.65
HPP-24×24×1
595×595×23
1200
2400
0.83
HPP-25×14×1
620×341×23
700
1400
0.48
HPP-25×16×1
620×391×23
800
1600
0.57
HPP-25×20×1
620×493×23
1000
2000
0.71
HPP-14×20×2
341×493×46
850
1700
20
70
0.77
20
HPP-20×12×2
493×290×46
700
1400
0.70
HPP-20×16×2
493×391×46
900
1800
0.94
HPP-20×18×2
493×442×46
1050
2100
1.01
HPP-20×20×2
493×493×46
1200
2400
1.12
HPP-24×12×2
595×290×46
850
1700
0.79
HPP-24×18×2
595×442×46
1300
2600
1.24
HPP-24×20×2
595×493×46
1400
2800
1.36
HPP-24×24×2
595×595×46
1700
3400
1.64
HPP-25×16×2
620×391×46
1200
2400
1.18
HPP-25×18×2
620×442×46
1350
2700
1.27
HPP-25×20×2
620×493×46
1500
3000
1.42
HPP-20×16×4
493×391×96
950
1900
18
68
1.45
28
HPP-20×20×4
493×493×96
1200
2400
1.73
HPP-24×12×4
595×290×96
850
1700
1.28
HPP-24×18×4
595×442×96
1300
2600
1.91
HPP-24×20×4
595×493×96
1400
2800
2.09
HPP-24×24×4
595×595×96
1700
3400
2.55
HPP-25×16×4
620×391×96
1200
2400
1.82
HPP-25×20×4
620×493×96
1500
3000
2.18
HPP-25×29×4
620×721×96
2150
4300
3.27
We can accept other size order beside the above mentioned size.
 |
||||||||||
|
||||||||||
 |
||||||||||
